SurePassID macOS PAM Guide

This guide covers installing, inspecting, and removing SurePassID MFA on macOS using the applications shipped on the SurePassID macOS MFA DMG.

Note: Administrator privileges are required to run the install, show configuration, and uninstall applications.

pam_surepassid.conf

A configuration file is required to perform the SurePassID MFA installation. The file must be created correctly, or the installation will fail.

A sample pam_surepassid configuration:

auth required /usr/local/lib/pam/pam_surepassid.so \
host=cloud.surepassid.com \
sp_account=YOUR_ACCOUNT_LOGIN_NAME \
sp_account_key=YOUR_ACCOUNT_LOGIN_KEY \
path=/AuthServer/REST/OATH/OathServer.aspx \
ca_cert_file=/etc/ssl/cert.pem

Options

• host=
  Hostname or IP address of the SurePassID server. (Required)

• port=
  Port number of the SurePassID server. (Default: 443)

• path=
  REST API path on the SurePassID server. (Required)

• send_otp_method=
  If this option is not set, only a TOTP or HOTP token can be used. Otherwise, an OTP is sent using the specified method. Valid OTP transport methods are sms, email, and voice.

• ca_cert_file=
  CA certificates PEM file to use. If this option is not set, the module searches the common system locations and uses the first one it finds; on macOS that is /etc/ssl/cert.pem. Set this option when the certificate bundle lives somewhere else. A CA certificates PEM file can be downloaded from https://curl.se/docs/caextract.html.

• sp_account=
  SurePassID tenant account login name.

• sp_account_key=
  SurePassID tenant account login key.

• proxy_server=
  Hostname or IP address of the proxy server. (Optional)

• proxy_port=
  Proxy server port. (Default: 8080)

• proxy_username=
  Proxy server user name. (Required if proxy_password is set.)

• proxy_password=
  Proxy server password. (Required if proxy_username is set.)

• allow_single_factor
  If this option is present and an internet connection is not available, single-factor authentication is used instead.

• allow_push_authentication
  If this option is present, the user may use push authentication.

• echo_verification_code
  If this option is present, the OTP code is visible as the user types it. The default is to hide the code.

• debug
  If this option is present, additional logging is written to the syslog.

Installing SurePassID macOS MFA

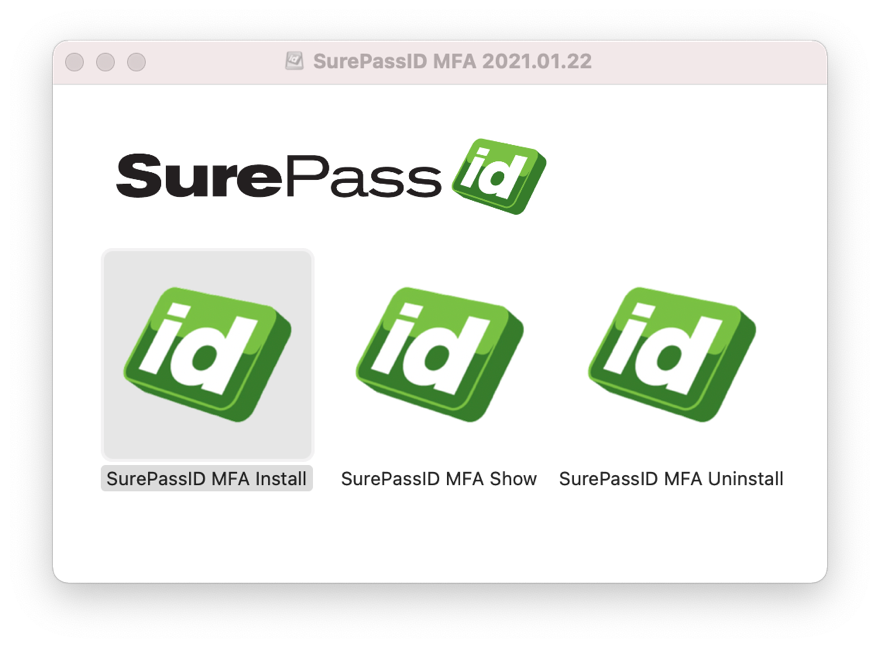

Run SurePassID MFA Install from the DMG.

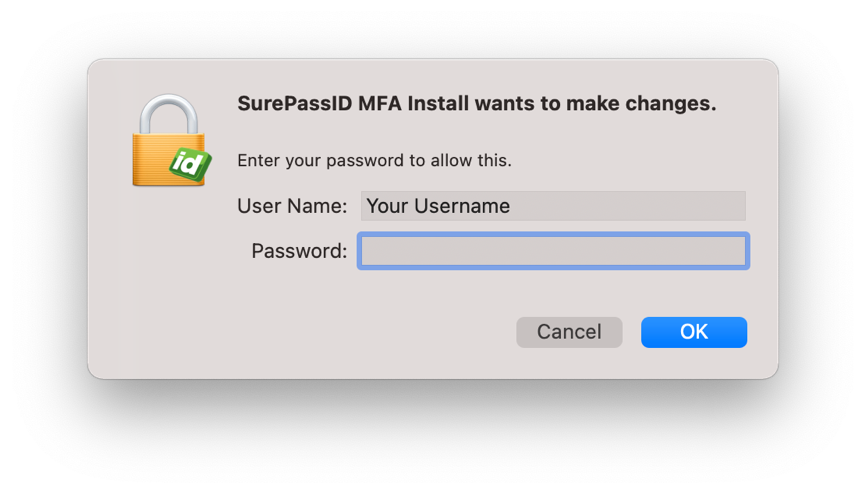

Enter your administrator user name and password.

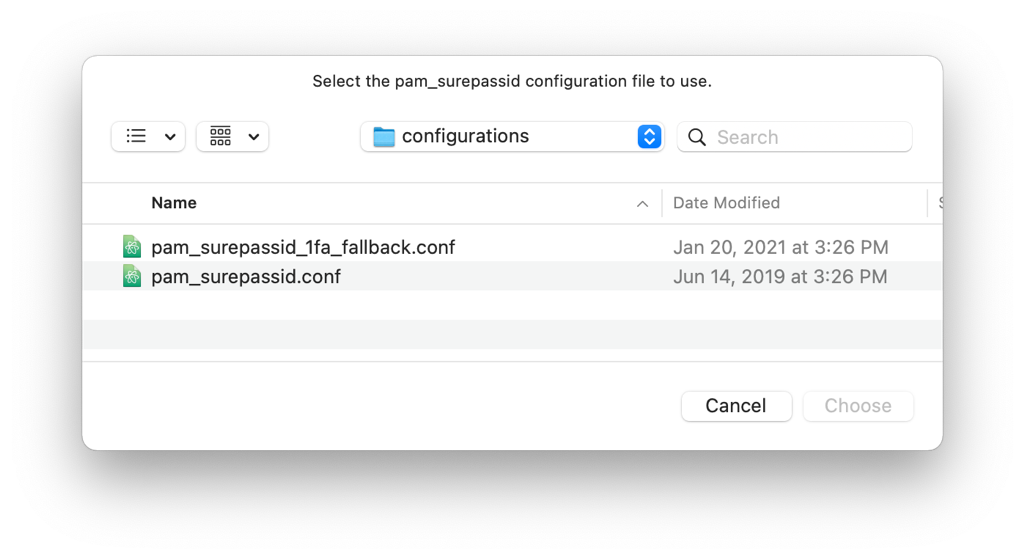

Select the pam_surepassid configuration to use for this installation.

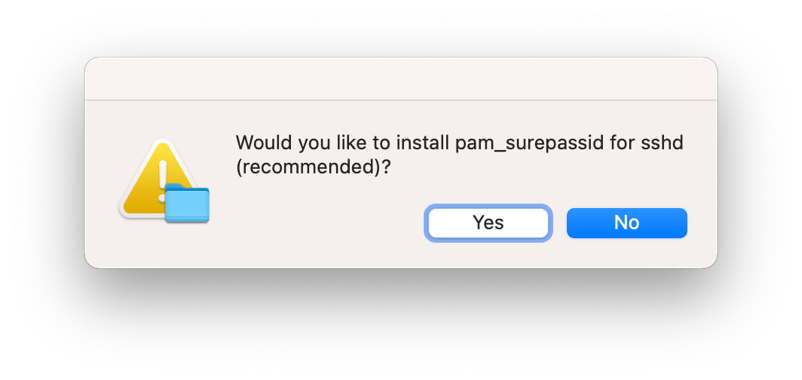

All library dependencies and pam_surepassid.so are installed. After the installation is complete, a prompt asks whether you want to configure the sshd PAM configuration to use pam_surepassid.

Note: /etc/pam.d/surepassid is always added.

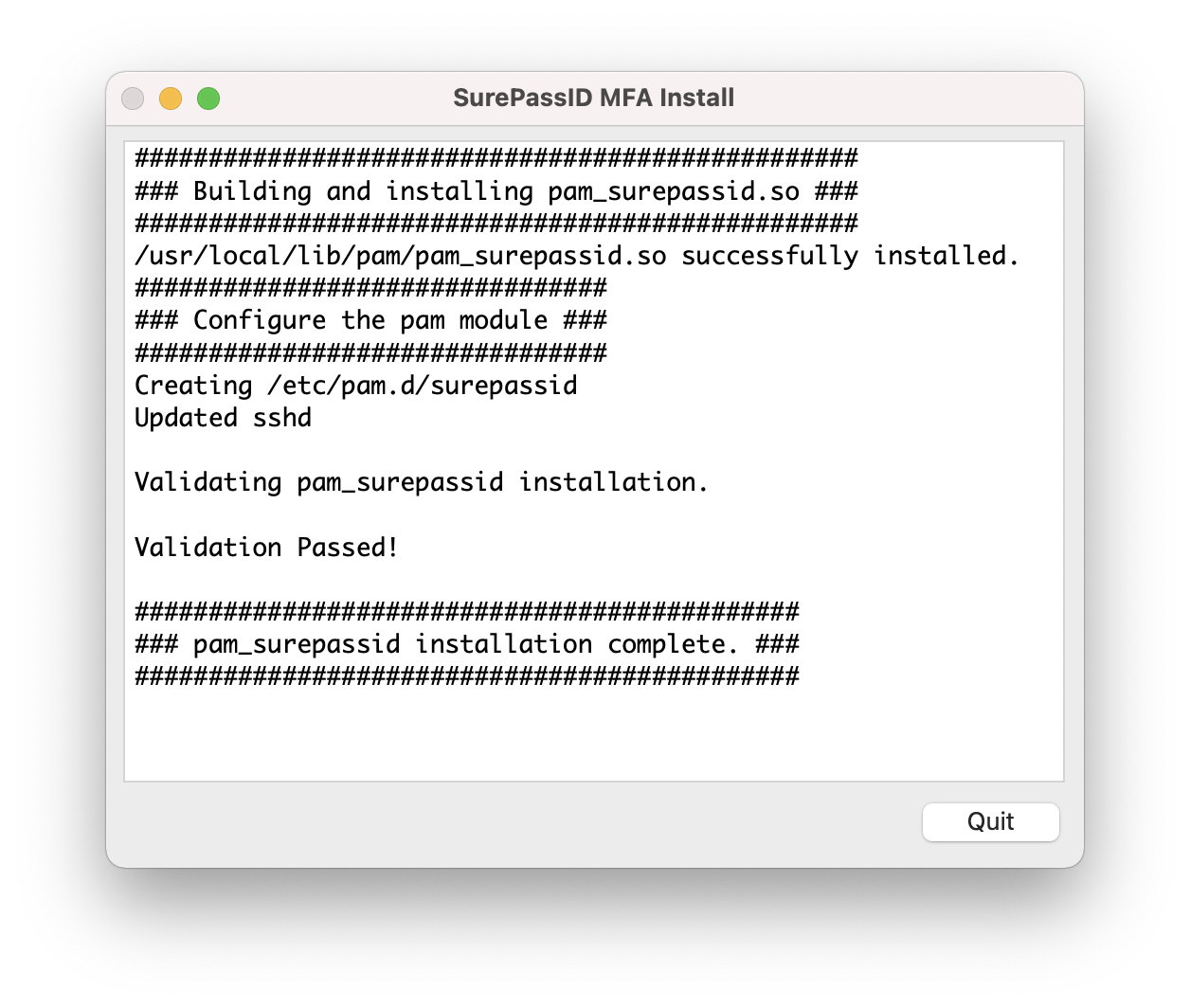

After the installation and configuration steps complete, the installation is validated automatically. If validation succeeds, the dialog looks like this. Click Quit when you are done.

Showing the SurePassID macOS MFA configuration

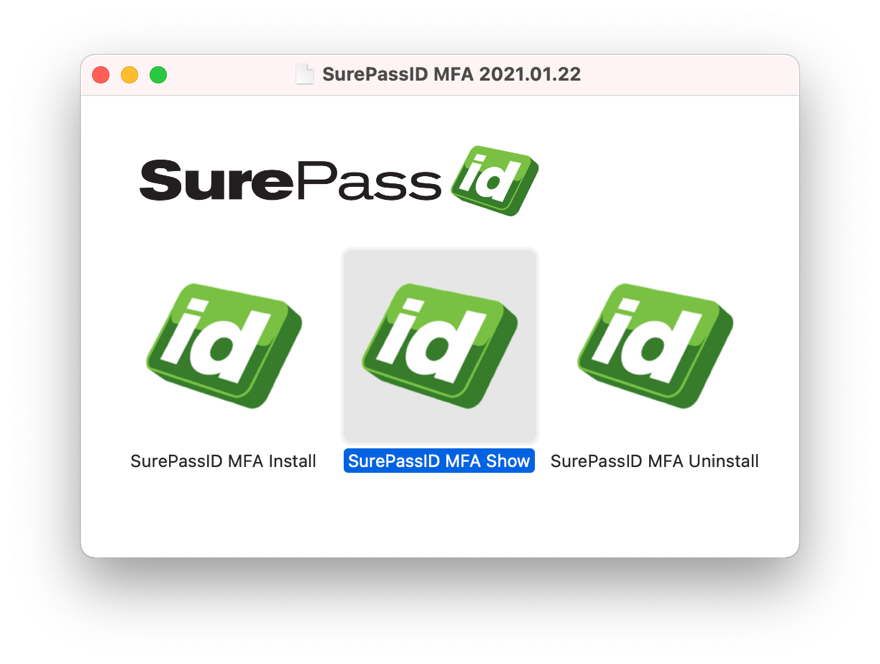

Run SurePassID MFA Show from the DMG.

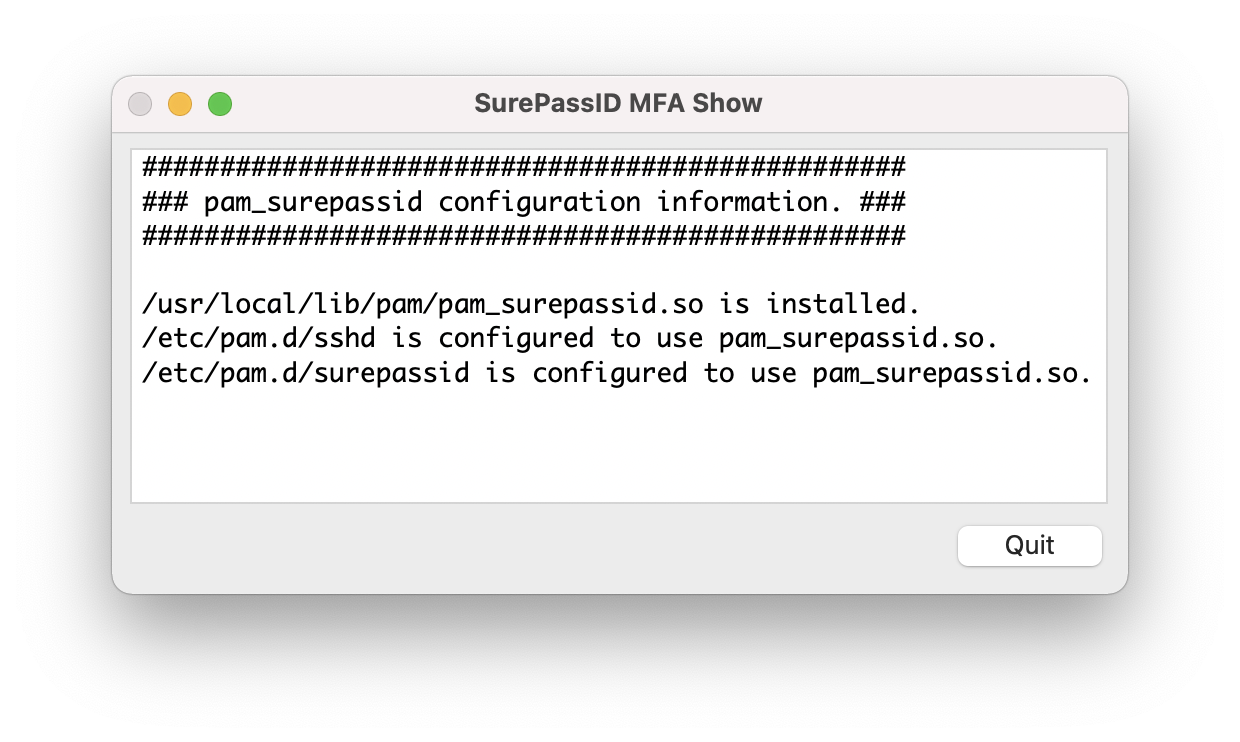

After you authenticate, the configuration data for pam_surepassid is displayed.

Uninstalling SurePassID macOS MFA

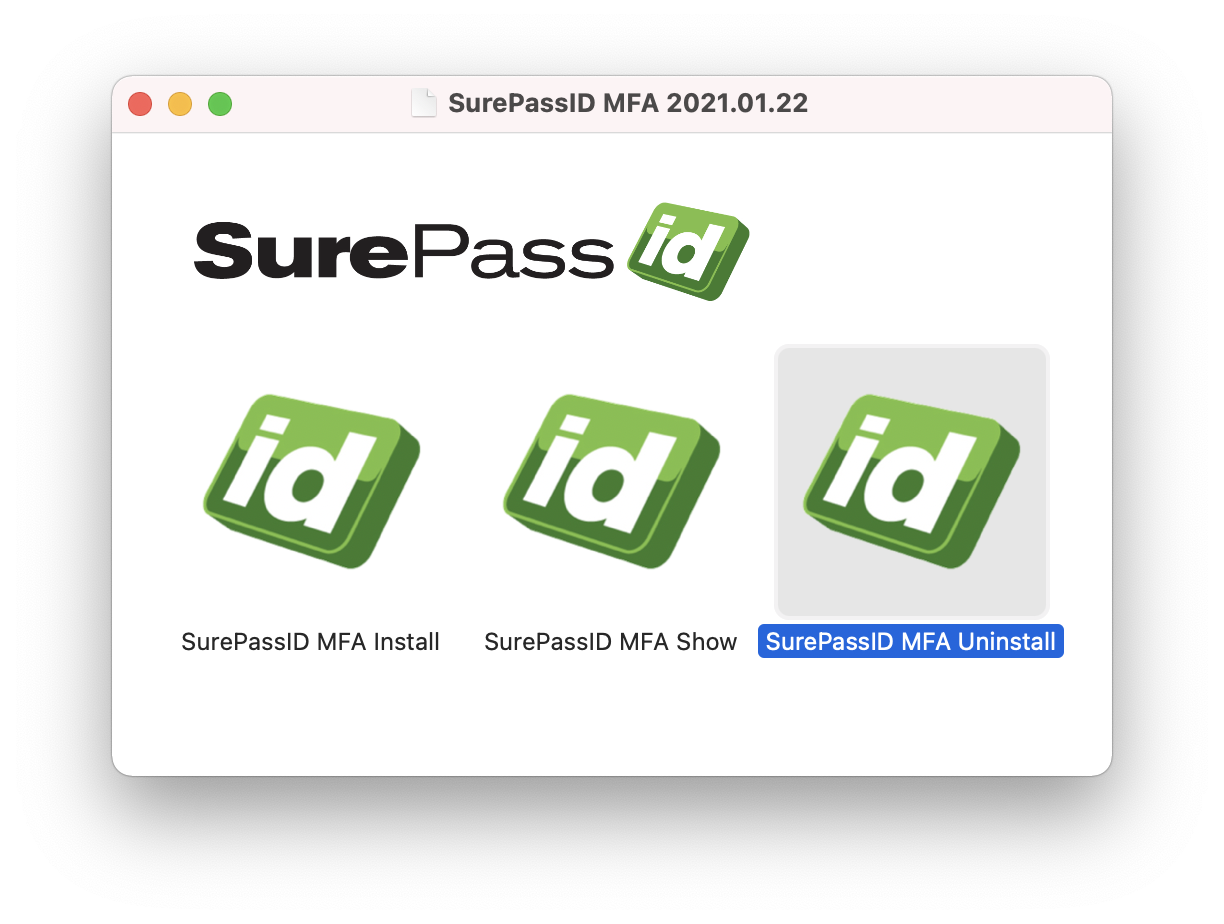

Run SurePassID MFA Uninstall from the DMG.

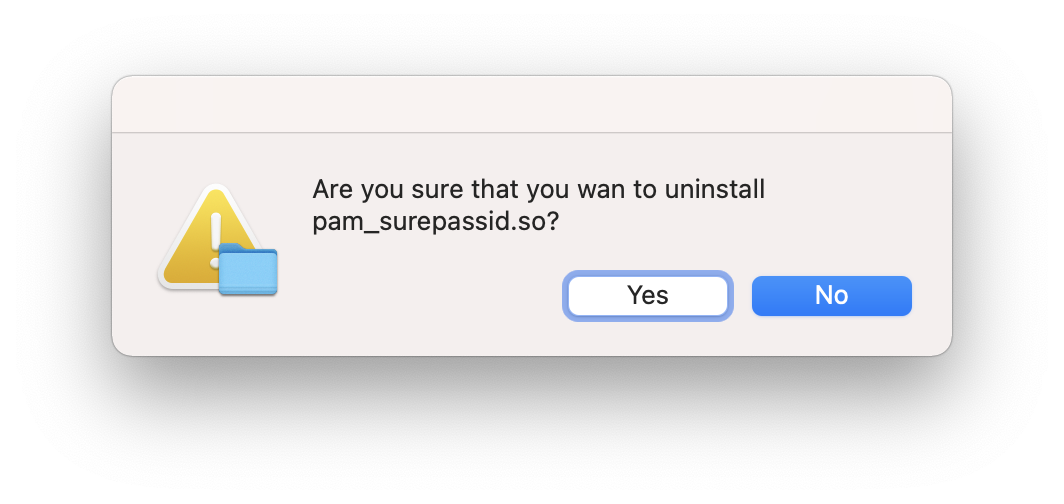

After you authenticate, you are prompted to start the uninstall of pam_surepassid.

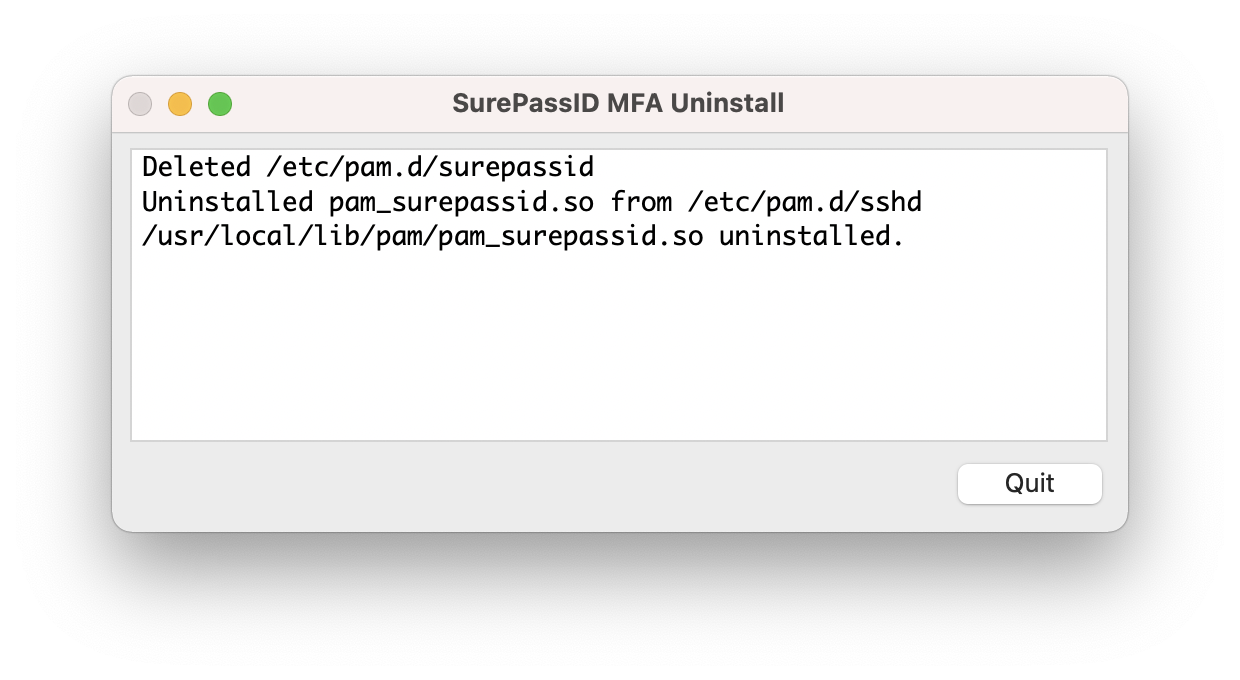

When the uninstall is complete, click Quit.
